Number of fans:
- 1 fan(s)
On/off switch:
- Yes
Cooling type:
- Active

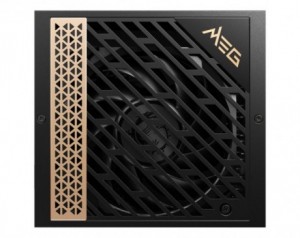

Fan diameter:
- 12 cm
Product colour:
- Black
Illumination:
- No
Total power:
- 1300 W
Max output current (-12V):
- 0.3 A
AC input frequency:
- 50 - 60 Hz
Combined power (+5V):
- 130 W
Combined power (+3.3V):
- 130 W
Power Factor Correction (PFC) type:
- Active
Maximum input current (@220V):
- 5 A
Max output current (+3.3V):
- 25 A
Maximum input current (@110V):
- 10 A
Max output current (+12V):
- 25 A
Power protection features:
- Short circuit
- Over voltage
- Under voltage
- Over current
- Over power
AC input voltage:
- 100 - 240 V
Combined power (+12V):
- 1300 W
Efficiency:
- 92%
Max output current (+5V):
- 25 A
Width:
- 150 mm
Height:
- 86 mm
Depth:
- 16 mm
80 PLUS certification:
- 80 PLUS Gold
Power supply unit (PSU) form factor:
- ATX
Purpose:
- PC
Number of SATA power connectors:
- 16
EPS power connector (4+4 pin):
- Yes

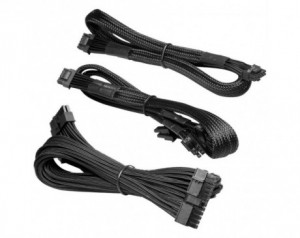

Cabling type:
- Fully-Modular
Motherboard power cable length:
- 60 cm
ATX Power connector (24-pin):
- Yes
EPS power connector (8-pin):
- Yes
Motherboard power connector:
- 24-pin ATX
Peripheral (Molex) power connectors (4-pin):
- 4
Floppy disk drive connector:
- Yes
PCI Express power connectors (6+2 pin):
- 8
Harmonized System (HS) code:
- 84733020
Warnings:
- The product is not suitable for disposal with municipal waste - dispose of in accordance with local regulations.
- Avoid contact of the product with water or other liquids.
- Do not open the case - risk of electric shock.
